How to Use N-Channel MOSFET: An Implementation Guide from Basics to Advanced Applications

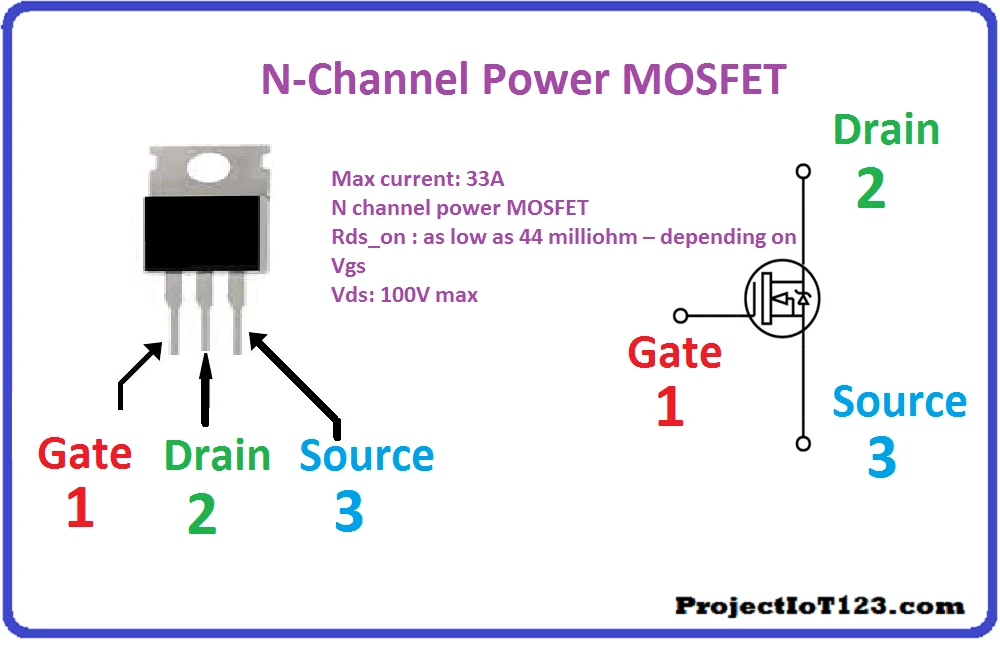

Basic Principles of N-Channel MOSFETs

N-channel MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are fundamental components in modern electronics. These devices use an N-type semiconductor channel that becomes conductive when a positive voltage is applied to the gate terminal relative to the source.

Common Applications and Circuit Configurations

N-channel MOSFETs are versatile components used in various applications:

• Power switching and load control
• Motor drivers and H-bridges
• LED drivers and constant current sources
• Power supply and voltage regulators
• Level shifting and signal conditioning

Design Considerations and Best Practices

When implementing N-channel MOSFETs in your circuit designs, several key factors need careful consideration:

1. Gate Drive Requirements

Proper gate drive is crucial for optimal MOSFET performance. Consider these aspects:

• Gate voltage should be high enough to fully enhance the channel (typically 10-12V for logic-level devices)
• Gate resistor selection affects switching speed and ringing
• Bootstrap circuits may be needed for high-side switching applications

2. Thermal Management

Effective thermal design ensures reliable operation:

• Calculate power dissipation under worst-case conditions
• Select appropriate heatsink based on thermal resistance requirements
• Consider thermal interface materials and mounting techniques

3. Protection Circuits

Implementing proper protection mechanisms is essential:

• Gate-source voltage protection using Zener diodes
• Snubber networks for controlling voltage spikes
• Current limiting and overcurrent protection

Advanced Implementation Techniques

Parallel Configuration

When handling high current applications, parallel MOSFET configuration offers several advantages:

High-Side Switching Solutions

Implementing N-channel MOSFETs in high-side applications requires special consideration:

• Bootstrap circuit design and component selection
• Level shifting techniques for gate drive signals
• Considerations for startup and duty cycle limitations

Troubleshooting Common Issues

Understanding common problems and their solutions can save significant development time:

Future Trends and Emerging Technologies

The MOSFET industry continues to evolve with new developments:

• Advanced packaging technologies for better thermal performance
• Integration of protection and drive circuits
• New materials for improved efficiency
• Wide bandgap alternatives like GaN and SiC

Conclusion and Next Steps

Successfully implementing N-channel MOSFETs requires careful attention to various design aspects and proper component selection. As your trusted semiconductor solutions provider, Olukey is here to support your design journey with quality products and expert guidance.
