High Voltage Gate Drivers: Powering Next-Generation Power Electronics

High voltage gate drivers are crucial components in modern power electronics, serving as the bridge between control circuits and power MOSFETs. As a leading semiconductor distributor, Olukey partners with WINSOK to deliver cutting-edge solutions for your power electronics needs.

The Critical Role of High Voltage Gate Drivers

In power electronics applications, high voltage gate drivers play an essential role in controlling power MOSFETs and IGBTs. These specialized integrated circuits provide the necessary voltage and current levels to efficiently switch high-power semiconductor devices, enabling applications from industrial motor controls to electric vehicle powertrains.

Key Features and Benefits

Fast switching speeds for improved efficiency
Robust protection features including undervoltage lockout
High noise immunity for reliable operation
Galvanic isolation for safety and performance
Compatible with wide input voltage ranges

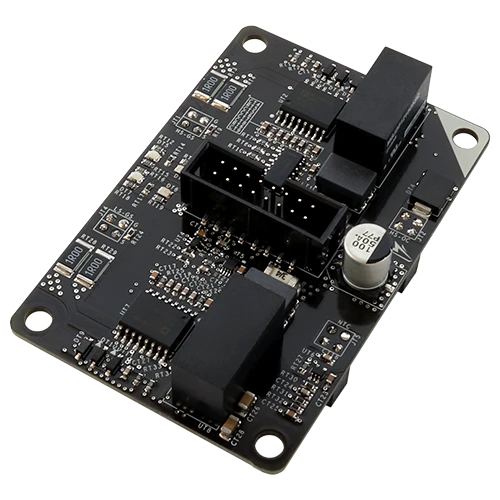

Featured Product: WINSOK High-Performance Gate Drivers

As the authorized WINSOK semiconductor supplier, Olukey offers premium gate driver solutions optimized for your power design needs. Our products feature industry-leading specifications and reliability.

Request Quote

Technical Specifications

Parameter	Typical Value	Benefits
Output Current	2.0A – 4.0A	Fast switching of high-power MOSFETs
Rise Time	50ns – 100ns	Minimized switching losses
Common Mode Transient Immunity	100V/ns	Reliable operation in noisy environments

Applications and Implementation Guidelines

Key Application Areas

High voltage gate drivers from Olukey’s semiconductor solutions find widespread use across multiple industries:

Electric Vehicle Inverters and DC-DC Converters
Solar Power Inverters and Energy Storage Systems
Industrial Motor Drives and Motion Control
Uninterruptible Power Supplies (UPS)
Switch-Mode Power Supplies (SMPS)
Induction Heating Systems

Design Considerations and Best Practices

When implementing high voltage gate drivers in your design, several key factors require careful consideration:

1. Layout Guidelines

Minimize gate loop inductance
Separate power and signal grounds
Use dedicated power planes
Place bypass capacitors close to supply pins
Consider thermal management requirements

2. Protection Features

Modern gate drivers incorporate various protection mechanisms:

Protection Feature	Function	Benefit
Undervoltage Lockout (UVLO)	Prevents partial turn-on	Protects against shoot-through
Desaturation Protection	Monitors VDS/VCE	Prevents device failure
Miller Clamp	Prevents parasitic turn-on	Improves switching reliability

WINSOK High Voltage Gate Driver Solutions

As the official distributor of WINSOK semiconductors, we offer:

Complete technical documentation and application support
Extensive inventory for immediate delivery
Competitive pricing for volume orders
Professional FAE support with 20+ years experience

Request Samples

Advanced Topics in Gate Driver Implementation

Isolation Technologies

Modern gate drivers employ various isolation methods to ensure safe and reliable operation:

Magnetic Isolation
- High common-mode transient immunity
- Excellent reliability and lifetime
- Compact size and low profile
Capacitive Isolation
- Low power consumption
- High-speed operation
- Cost-effective solution
Optical Isolation
- Maximum isolation voltage
- Excellent noise immunity
- Traditional proven technology

Thermal Management Considerations

Effective thermal management is crucial for reliable operation of high voltage gate drivers:

Power Dissipation Analysis
- Calculate switching losses
- Consider gate charge requirements
- Account for quiescent power consumption
Thermal Design Solutions
- PCB thermal vias and copper planes
- Heat sink selection and mounting
- Forced air cooling requirements
